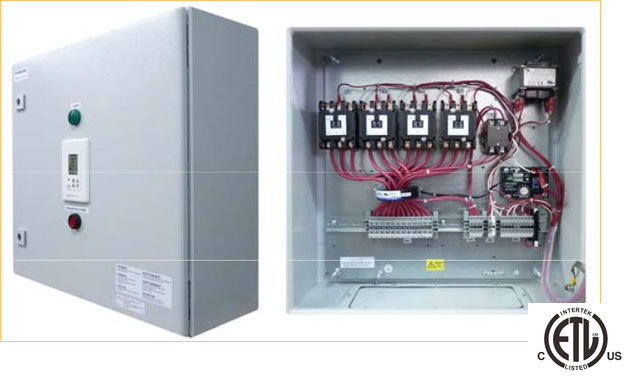

All-in-One Commercial Snow Melting Controller

• Automatic control and power distribution for deicing and snow melting
• Energy Efficient algorithm
• Integrated electronic controller with backlit LCD display
• User friendly interface
• Up to 5 zones activation
• Sequencing option between the zones — Allowing larger snow melting area with less available power on site
• Multiple snow sensors input—optional
• Four 50 Amp Three Pole 600V Contactors
• Integrated adjustable Ground Fault Sensor
• Adjustable Setpoints
• Adjustable Upper and Lower Limit Temperature
• Adjustable Hold-On-OFF Delay and Manual On
• Adjustable splitting time between the zones with multi configurations between zones
• Technician testing / commissioning mode for easy and fast system test all year long (even during summer or at high temp)
• ETL certification



Description

• The outdoor ternperature set-point as well as ground Upper limit temperature and ambient lower limit temperature can be easily set.
• The Technician Settings mode allows installer or technician to adjust the parameters for custom,. installations.
• The PYROBOX5 is a "Plug and Play" controlled power distribution panel for frost protection, ice and snow melting applications.
• When receiving a signal from the snow sensor/s, it activates the contactors energizing the heating elements.
• Based on the DIP switches configuration, the zones are activated either continuously or in customized sequencing between the zones.
• The adjustable Hold-On time, keeps the outputs to the zones active to ensure complete snow rnelting.
• The Hold-On (Time delay) is adjustable in the range of Oup to 99 hours.
• The PYROBOX5 Built-in Ground Fault interuptor allows settings for the tripping current between 0.1 — 1.0 A.
• The GFS adjustable time delay provides a simple and safe protection from nuisance tripping.

• DIP Switches located on the controllers provide easy access to technician mode and to the system configuration settings.
• A 5th output (277 VAC, 30A Max Single Phase) can be used as a stand-alone ice melting zone or be activated simultaneously with zone #4. The Zone #5 offers a simple option for gutter, roof ice-melting or critical zone
• The PYROBOX5 allows snow sensor input both from the PYROSENSE sensors and also from a 3rd party snow sensors.
• 3 terminals in the PYROBOX5 are available to connect a CIT-1 T., GIT-1 TN or SIT-6Eni sensors and use them to control some or all of the zones.
• Installing the system is a quick and easy task. Apart of mounting the metal box to the wall, the installer needs only to connect the line in and line out wires in the marked terminals and the system is ready to work.

The performance specifications are nominal and conform to acceptable industry standards. For applications at conditions beyond these specifications. consult the local Orion EcoTech representative. orion Ecorechshall not be liable for damages resulting from misapplication or misuse of its products. This document is subject to change without any notice.
